"IOT/Wi-Fi" Communication function. (Options)
The state can be monitored from the remote place with tablet and
smart phone.
"GSA system"Grinding pressure power self
adjustment mechanism.[Patented]
Grinding pressure power is not given to the material, it becomes
possible to suppress the damage to the grinding surface dramatically
and a highly accurate precision working can be done.
Equipped with power saving motor.
The motor of the low noise and the power saving standard is installed.
Three point mounting fixation method table
inclination adjustment mechanism of company's
in-house development. [Patented]
The slope adjustment of the table can surely be done by the submicron unit.
Permanent electromagnetic chuck table by the standard specification.
The permanent electromagnetic chucking table doesn't give the material the thermal effect.
The ultraprecision machining of the submicron can surely be done as a result.
Space saving and easy operation design [patent pending]
SGR-70SP is adopted a new lifting system for spray protection cover.
Conventional table cover that opens and closed on the sides makes wasteful space that is problem.
The new cover lifting type, however,solved this problem. When down the cover, it opens a 240-degree field of woeking space so thatoperator can change jig etc.
without any stress. It improves productivity as well safety.
| Mechanical specification (Standard specification) | ||
|---|---|---|
| Correspondence work maximum size | H400mm×φ700mm×500kg | |
| Diameter of table | 700mm | |
| Diameter of grindstone wheel | 400mm | |
| Amount of minimum incision | 0.001mm | |
| Wheel spindle incision speed | 0.001～1.500mm/min | |
| Protective cover | Double door slide door | |
| Automatic grinding program system | Standard equipment | |
| Automatic concentration oiler | Standard equipment | |
| Ilumination | Standard equipment / Type LED | |
| Size of machine (main body) | W1530×D2025×H2070（2420） | |
| Weight (Only the main body :). | 5500kg | |
| Options |
|---|
| Grinding lubricant tank （Max 400L) |
| Magnetic separator |
| Manual sending type feeding paper filter |
| Grinding lubricant cooling system |
| Mist separator |
| Centrifugal separator |
| Automatic disposal centrifugal separator |
| Automatic measurement grinding device |
| Vacuum adsorption unit |
| Air gan and water gun unit |
| Signal tower |
| IOT/Wi-Fi Communication function |

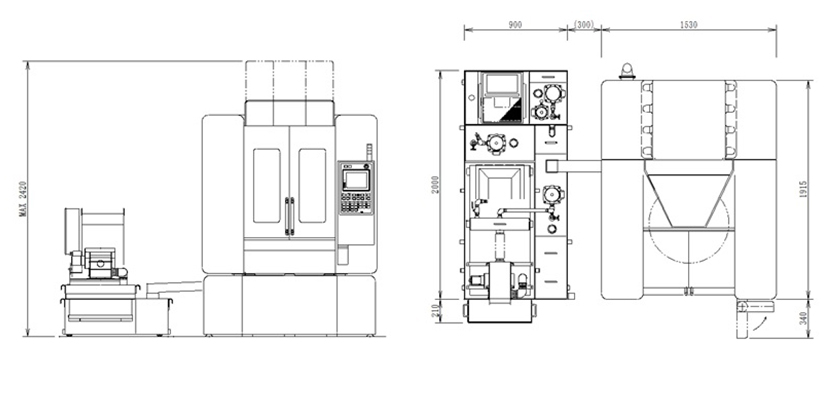

| ■External appearance |
|---|
 |
