Ultra-precise vertical rotary grinder SGR-1300B

Single unit from ultra-precise to heavy duty grinding!

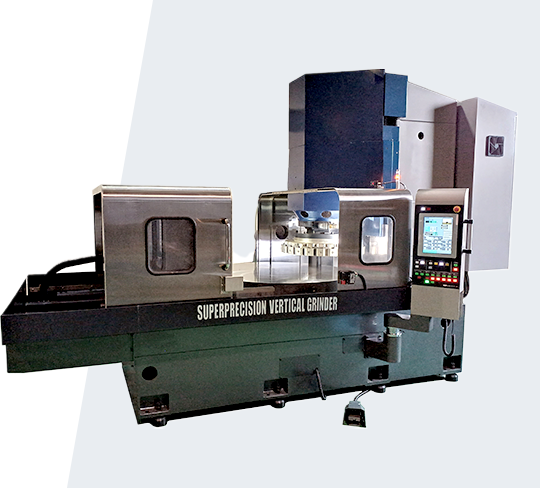

Ultra-precise vertical rotary grinder SGR-1300B

Stable grinding from precise grinding to heavy duty grinding is realized by the newly-developed high rigid cabinet

Simple and easy operation with unique
NC control

Space-saving in spite of its big table
of φ1,300 mm

Rust-resistant and durable stainless
used for all surfaces

Works height up to 300/600mm high
can be handled as standard
Up to 1,200 mm can be handled (with special order)!

Mechanical specification (Standard specification)
Maximum work that can be handled 300/600(1,200)mmH×1,300mmφ×1,300kg
Diameter of electromagnetic chuck table 1,300mm (with sliding mechanism)
External diameter of grindstone 700mm
Minimum cut depth 0.01mm(0.001mm)
Auto cutting speed of grindstone 0.001~1,500mm/min
Size of machine (main body) 1,500×2,700×2,500H(mm)
Machine weight (main body only) Approx. 8,500kg
Option, other
Automatic grinding size controller
Vacuum absorption system
Centrifuge (Standard specification/SUS standard)
Mist collector unit
Paper filter unit
LED interior light
Primary dirty tank to be installed separately
All-stainless grind liquid tank
Cooling jacket water type grind liquid tank
Grind liquid tank (standard)
Tank capacity 1,000L
Grind liquid Water-soluble grind liquid
Grind liquid cooler Air-cooling
Magnet separator For water-soluble grind liquid
