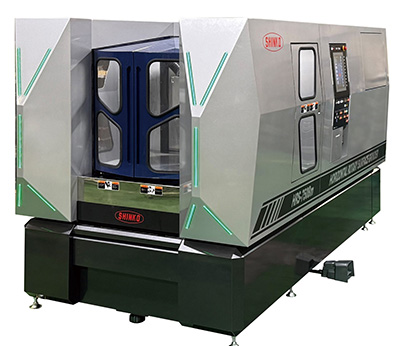

Permanent electromagnetic chuck table by the standard specification.

The permanent electromagnetic chucking table doesn't give the material the thermal effect.
The ultraprecision machining of the submicron can surely be done as a result.

It is standard equipment as for a built-in motor of the domestic production goods.

The motor that agrees with 'Law Concerning Rational Use of Energy' is adopted. Power consumption is suppressed.
An auto balancer can be installed in the option.

Wheel dresser

It is standard equipment as for two kinds for the surface grinding and for the tilt grinding. (automatic switch type)

It is standard equipment as for the inequitable velocity sending.

The amount of grinding is irrelevantly kept constant at the position of the whetstone.

Large-scale work can be processed.

The correspondence work size can correspond to φ800mm/□530mm.

Two axis control simultaneously (X・Z axis)

Taper shape processing. It is also possible that it is construction of the whetstone.

It is standard equipment as for the figure conversation processing program.

The processing with steps is also easy.

Machine specification (standard)

Correspondence work maximum size
H300mm xφ800mm/□530mm MAX300kg

Diameter of table
φ750mm

The tilt corner is changeable.
±10°（Manual）

Axis stroke ZX axis
Z 350mm／X 450mm

Size of whetstone
φ355mm×Insideφ127mm　Width38～Max50mm

Amount of minimum incision
0.001mm

Wheel spindle incision speed
0.001mm/min

Electric motor
・Wheel spindle vertical motion
　Servo motor drive
・Wheel spindle
　Built-in motor drive7.5Kw/700～1500min-1
・Table
　Servo motor drive/20～150min-1
・X axis
　Servo motor drive

Grinding lubricant
Water soluble grinding lubricant

Automatic grinding program system
Standard equipment

Figure conversation processing program
Standard equipment

Processing control
Inequitable velocity sending/Standard equipment

In-flight lighting
Standard equipment／LED

Automatic concentration oiler
Standard equipment

Wheel dresser
Standard equipment

Balance whetstone flange
Standard equipment

Power supply（Main Machine）
△AC200V 34.6kVA 50/60Hz

Size of machine (main body)
W1700xD3260xH1900

Weight (Only the main body).
6400kg

Options

Standard grinding liquid tank (400L or less)

Inverter motor drive system/Wheel spindle

IOT/Wi-Fi Communication function

Main grinding lubricant tank

Grinding lubricant tank by stainless steel

Magnetic separator

Manual sending type feeding paper filter

Grinding lubricant cooling system

Vacuum adsorption unit

Centrifugal separator

Automatic measurement grinding device

Air gan unit

Water gun unit

Signal tower

Auto balancer

Left side slide type cover

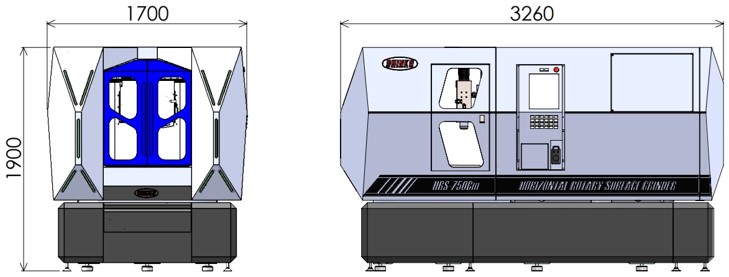

■Sketch drawing（Main body unit）
