"IOT/Wi-Fi" Communication function. (Options)

The state can be monitored from the remote place with tablet and smart phone.

"GSA system"Grinding pressure power self adjustment mechanism.[patented]

Grinding pressure power is not given to the material, it becomes possible to suppress the damage to the grinding surface dramatically and a highly accurate precision working can be done.

Equipped with power saving motor.

The motor of the low noise and the power saving standard is installed.

Three point mounting fixation method table inclination adjustment mechanism of company's in-house development.[patented]

The slope adjustment of the table can surely be done by the submicron unit.

Permanent electromagnetic chuck table by the standard specification.

The permanent electromagnetic chucking table doesn't give the material the thermal effect. The ultraprecision machining of the submicron can surely be done as a result.

Space saving and easy operation design
[patent pending]

SGR-70SP is adopted a new lifting system for spray protection cover.
Conventional table cover that opens and closed on the sides makes wasteful space that is problem. The new cover lifting type, however, solved this problem. When down the cover, it opens a 240-degree field of woeking space so thatoperator can change jig etc. without any stress. It improves productivity as well safety.

Machine specification (standard)

Correspondence work maximum size
H400mm×φ700mm×500kg

Diameter of table
700mm

Diameter of grindstone wheel
400mm

Amount of minimum incision
0.001mm

Wheel spindle incision speed
0.001～1.500mm/min

Protective cover
Double door slide door

Automatic grinding program system
Standard equipment

Automatic concentration oiler
Standard equipment

Ilumination
Standard equipment / Type LED

Size of machine (main body)
W1530×D2025×H2070（2420）

Weight (Only the main body :).
5500kg

Options

Grinding lubricant tank （Max 400L)

Magnetic separator

Manual sending type feeding paper filter

Grinding lubricant cooling system

Mist separator

Centrifugal separator

Automatic disposal centrifugal separator

Automatic measurement grinding device

Vacuum adsorption unit

Air gan and water gun unit

Signal tower

IOT/Wi-Fi Communication function

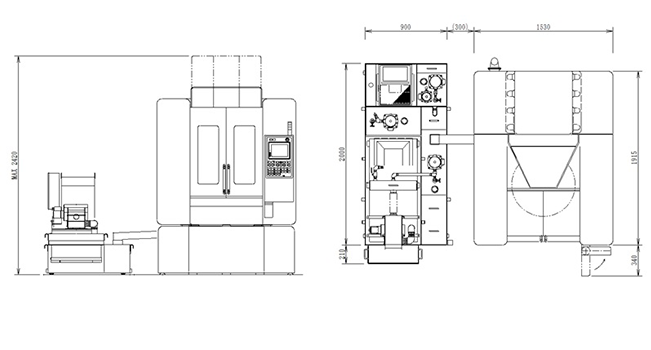

■External appearance
