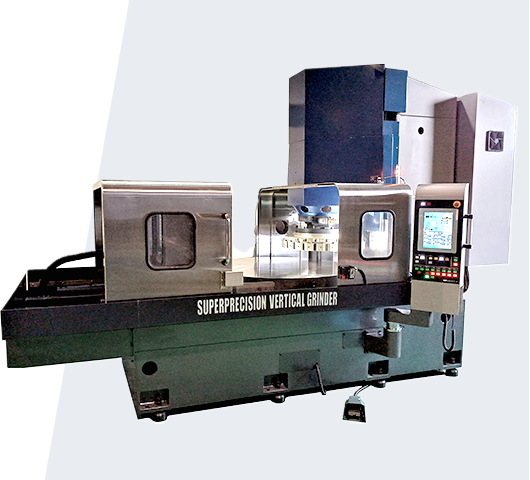

Stable grinding from precise grinding to heavy duty grinding is realized by the newly-developed high rigid cabinet
Simple and easy operation with unique NC control
Space-saving in spite of its big table of φ1,300 mm
Rust-resistant and durable stainless used for all surfaces
Works height up to 300/600mm high can be handled as standard
Up to 1,200 mm can be handled (with special order)!
- Mechanical specification (Standard specification)
- Maximum work that can be handled
300/600（1,200）mmH×1,300mmφ×1,300kg
- Diameter of electromagnetic chuck table
1,300 mm (with sliding mechanism)
- External diameter of grindstone
700mm
- Minimum cut depth
0.01mm (0.001mm)
- Auto cutting speed of grindstone
0.001～1,500 mm/min
- Size of machine (main body)
1,500×2,700×2,500H（mm）
- Machine weight (main body only)
Approx. 8,500kg
- Option, other
- Automatic grinding size controller
- Vacuum absorption system
- Centrifuge (Standard specification/SUS standard)
- Mist collector unit
- Paper filter unit
- LED interior light
- Primary dirty tank to be installed separately
- All-stainless grind liquid tank
- Cooling jacket water type grind liquid tank
- Grind liquid tank (standard)
- Tank capacity
1,000L
- Grind liquid
Water-soluble grind liquid
- Grind liquid cooler
Air-cooling
- Magnet separator
For water-soluble grind liquid
